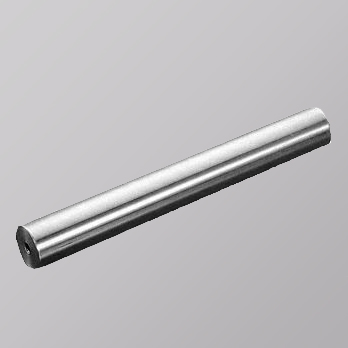

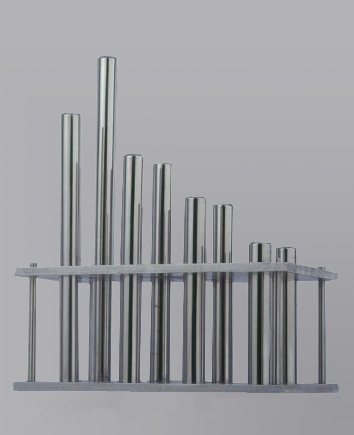

Magnetic Filter Bars:
- Powerfully extract fine ferrous contamination from free flowing products such as sugar, grain, tea and liquids.
- Typically with NdFeB magnets, could give peak surface Gauss value of 9'000Gs, and the Max. value we could achieve is 12'000Gs.
- Fully seal welded, waterproof and well polished.
- Food grade could be provided on request.

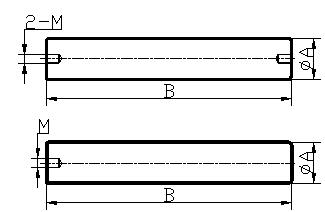

- For all the dimensions, the threaded hole(s)(M6, M8, M12) could be supplied on one end/on both ends.
Magnetic Filter Bars |
ITEM No. |
ITEM No. |
A (mm) |
B(mm) |
No. of holes |
(Ferrite series) |
(NdFeB series) |
OEYF2A0001 |
OEYF5A0001 |
25 |
100 |
2-M6 |
OEYF2A0002 |
OEYF5A0002 |
25 |
150 |
2-M6 |
OEYF2A0003 |
OEYF5A0003 |
25 |
200 |
2-M6 |
OEYF2A0004 |
OEYF5A0004 |
25 |
250 |
2-M6 |
OEYF2A0005 |
OEYF5A0005 |
25 |
300 |
2-M6 |
OEYF2A0026 |
OEYF5A0026 |
25 |
350 |
2-M8 |
OEYF2A0027 |
OEYF5A0027 |
25 |
400 |
2-M8 |
OEYF2A0028 |
OEYF5A0028 |
25 |
450 |
2-M8 |
OEYF2A0017 |
OEYF5A0017 |
25 |
500 |
2-M8 |
OEYF2A0029 |
OEYF5A0029 |
25 |
550 |
2-M12 |
OEYF2A0030 |
OEYF5A0030 |
25 |
600 |
2-M12 |
OEYF2A0031 |
OEYF5A0031 |
25 |
750 |
2-M12 |
OEYF2A0032 |
OEYF5A0032 |
25 |
800 |
2-M12 |
OEYF2A0033 |
OEYF5A0033 |
25 |
1000 |
2-M12 |
- Other dimensions could be provided on request.
|
