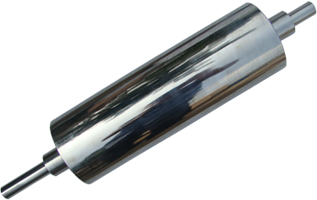

Magnetic Roller



Magnetic Roller

With unique magnetic circuit design, filter the micro magnetic substance and mineral substance from the material by strong magnetic force, such as clods, pumice, stone, brick chippings and so on, so that to clean up the weak magnetic substance in the material effectively.



Benefits:

With joint spindle head to connect with motor

Use the magnetic roller in conjunction with belt to filter the magnetic impurities automatically



Technical data:

Magnetic performance: 15'000Gs

Materials of housing and other parts: 304 stainless steel/316 stainless steel

Surface finish: Polished

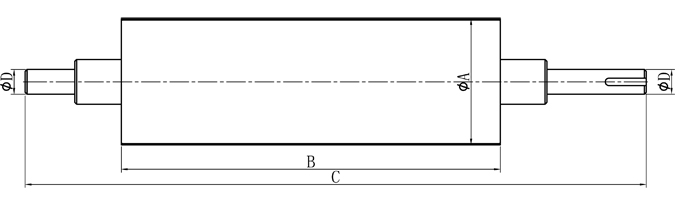

Model No.

Dimension

Length

Diameter

AXB mm

C mm

D mm

SCXCG-1030

101.6X305

500

20

SCXCG-1042

101.6X417

612

20

SCXCG-1053

101.6X529

724

20

SCXCG-1064

101.6X641

836

20

SCXCG-1075

101.6X753

948

20

SCXCG-1086

101.6X865

1060

20

SCXCG-1097

101.6X977

1172

20

 Download Product PDF
