Pipeline Magnetic Separator - Standard version

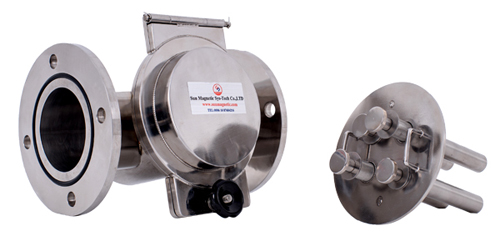

Pipeline Magnetic Separator -  Standard version

Design for pressure-operated conveying fluid,pulp and fine powder in the production line.Surface gauss value can get to more than 12'000Gs,Housing of magnetic separator is made by stainless steel AISI304 with polished finish to meet the requirement of food and pharmacy industry.

Easy-cleaning structure to wipe off Fe particles conveniently and efficiently.

Be widely used in processing industry of edible oil,food and pharmacy to filter all kinds of ferromagnetic particles from fluid,pulp and fine powder efficiently and safely.



Technical data

Magnetic performance: 8'000Gs-12'000Gs

Materials of housing and other parts: 304 stainless steel/316 stainless steel

Surface finish: Polished/Sand blasting/Powder painting









Pipeline Normal Diameter

Model No.

A mm

B mm

C mm

D mm

DN25

SCXD25

159

25

157

350

DN32

SCXD32

159

32

157

350

DN40

SCXD40

159

40

157

350

DN50

SCXD50

159

50

157

350

DN65

SCXD65

159

65

157

350

DN80

SCXD80

159

80

215

390

DN100

SCXD100

159

100

239

390

DN125

SCXD125

272

125

299

503

DN150

SCXD150

320

150

345

650

DN200

SCXD200

320

200

380

650



 Download Product PDF
